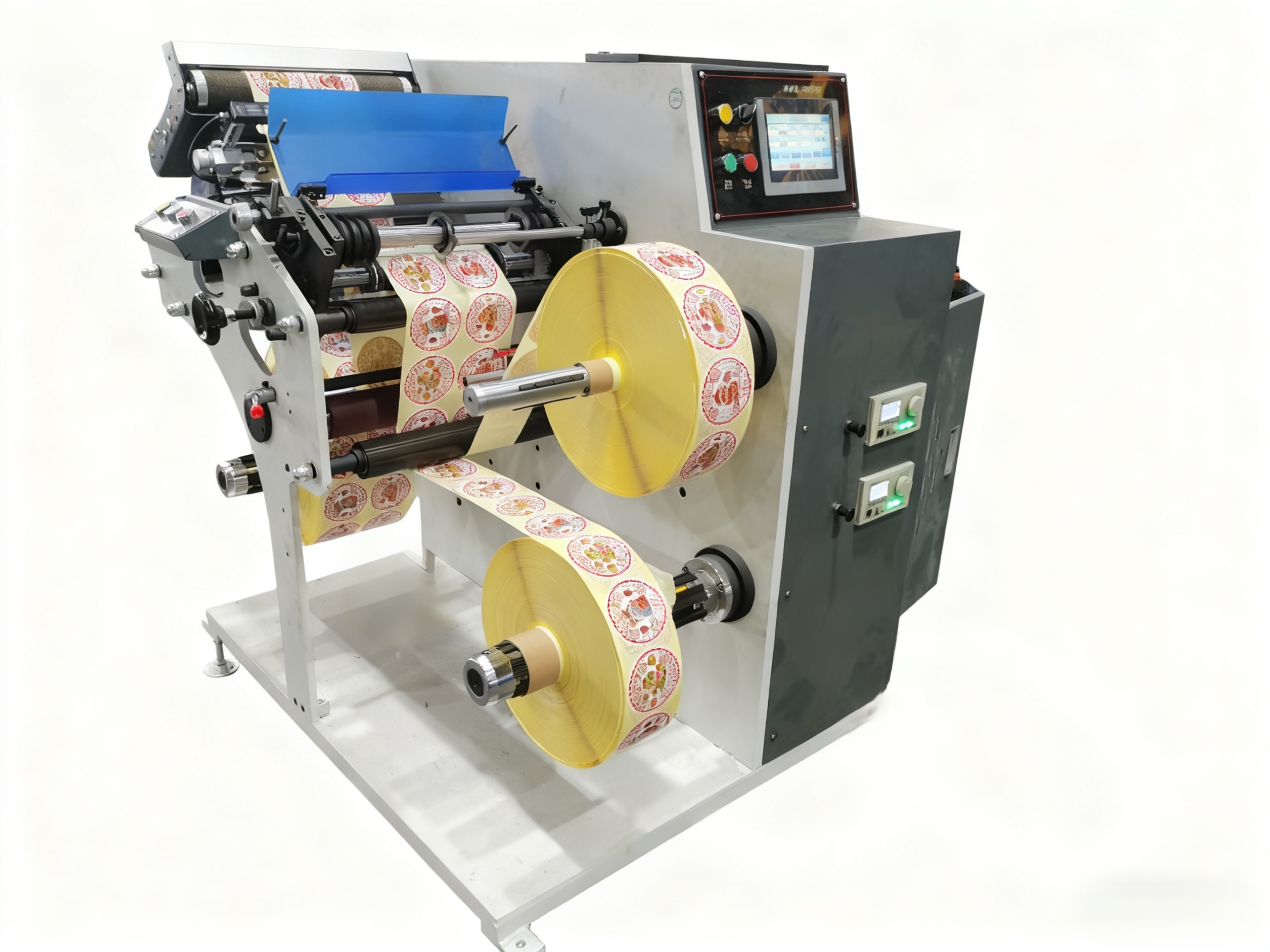

SR-350FZ/SR-450FZ Label Slitting Machine for Precise and Material Slitting with Full Servo Driven System

Name: SR350FZSR450FZ Label Slitting Machine for Precise and Material Slitting with Full Servo Driven System
Brand: SUNRISE
Price: 5000 USD

SR-350FZ/SR-450FZ Label Slitting Machine for Precise and Material Slitting with Full Servo Driven System Manufactures

Brand Name : SUNRISE

Model Number : SR-350FZ

Certification : CE

Place of Origin : Zhejiang, China

MOQ : 1

Price : 5000-7000USD

Payment Terms : T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 15 work days

Packaging Details : exported wooden case

Voltage : 220V

Max Slitting Speed : 450m/min

Power Supply : 220v/50hz

Length Of Cutting : 20-400mm

Max Unwinding Diameter : 600mm

Warranty Period : 1 year

Control System : PLC

Max Web Width : 350mm

Contact Now

SR-350FZ/SR-450FZ Label Slitting Machine for Precise and Material Slitting with Full Servo Driven System

product introduction

One researched new product, mostly is used for slitting narrow roll material, it is for high level market with full servo driven system, PLC control system, it can meter and number counting, static eliminator, no material no working etc.

Performance and characteristics

machine running controlled by PLC system

tension controlled by taper tension

Use servo motor instead of normal motor,work stable and precise

With meter and quantity counter, quantity counter use Germany sick brand

Use EPC web guide

Technical Data

Model	SR-350FZ	SR-450FZ
Max. Slitting speed	220m/min	220m/min
Max web width	350mm	450mm
Min. Slitting width	15mm	15mm
Cutter installed	8 sets	10 sets
Max. Unwinding Dia	600mm	600mm
Max. Rewinding Dia	600mm	600mm
Air supply	0.8mpa	0.8mpa
weight	800kg	1000kg
Dimension(LWH)	160011001300	165012001350

Main Parts List:

NO.	Parts Name	Brand
1	PLC	China-tonghang
2	Counting sensor	Germany--sick
3	Servo Motor	China-tonghang
4	Buttons	China-chentai
5	A.C.Contactor	French--Schneider
6	Touching-screen	China- duocai
7	Epc web guide	China
8	Tension controller	ZXM-50 Taper tension

Packing & Delivery:

SR-350FZ/SR-450FZ Label Slitting Machine for Precise and Material Slitting with Full Servo Driven System
